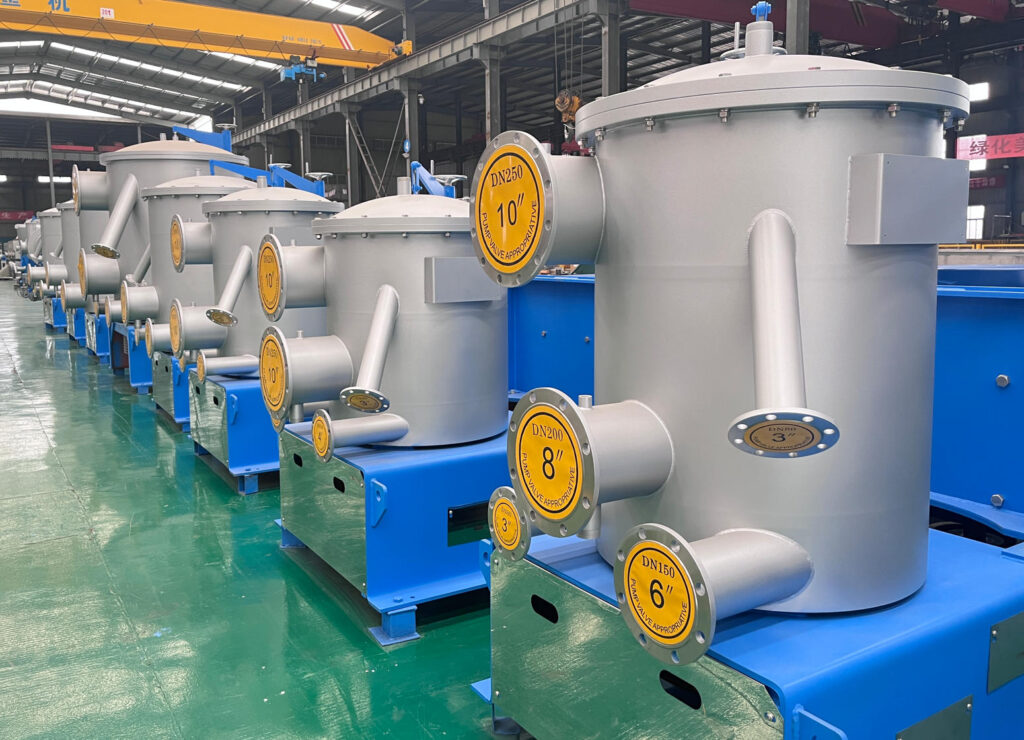

Pressure screen
Pressure screen belongs to screening equipment of stock preparation system. It is more advanced paper pulp screening equipment in the modern world, which has great ability of screening function and low pulse. It is widely used in the fine screening of wood pulp, straw pulp and waste paper pulp, especially suitable as pre-net screening equipment before paper machine.
Specification:
| Type | ZSL100 | ZSL200 | ZSL300 | ZSL350 | ZSL400 | |||||
| Screening area (m2) | 0.6 | 0.8 | 1.2 | 1.5 | 2.0 | |||||
| Pressure (MPa) | 0.1-0.25 | |||||||||
| Concentration (%) | 0.5-1.5 | 1.5-3.5 | 0.5-1.5 | 1.5-3.5 | 0.5-1.5 | 1.5-3.5 | 0.5-1.5 | 1.5-3.5 | 0.5-1.5 | 1.5-3.5 |
| Capacity (t/d) | 20-30 | 30-90 | 30-90 | 50-130 | 45-130 | 70-130 | 55-160 | 90-240 | 75-220 | 120-320 |
| Power (kw) | 22 | 45 | 37 | 75 | 37 | 90 | 45 | 110 | 55 | 132 |
