The mould is manufactured with high-precision structure and uniform wire arrangement to ensure stable sheet formation and consistent paper quality.

We supply high-quality cylinder moulds for paper mills worldwide, designed to deliver stable performance, excellent forming quality, and long service life.
From standard designs to fully customized solutions, our cylinder moulds are trusted by paper manufacturers for consistent operation and reliable output.

]]> https://www.cnpapermachinery.com/cylinder-mould-for-paper-machine/feed/ 0 https://www.cnpapermachinery.com/perforated-plate-for-dd-washer-twinroll-press-washer/ https://www.cnpapermachinery.com/perforated-plate-for-dd-washer-twinroll-press-washer/#respond Tue, 23 Dec 2025 13:46:07 +0000 https://www.cnpapermachinery.com/?p=2733 Perforated Plate for Pulp– High-Precision Stainless Steel Screen Plate

Our perforated plate (also known as screen plate for pulp screening &washing systems) is engineered for high-efficiency fiber separation and stable pulp screening performance in modern pulp & paper mills. Manufactured from premium stainless steel and processed with CNC drilling technology, our perforated plates deliver excellent wear resistance, smooth surface finish, and consistent hole accuracy.

Designed for applications in Andritz DD washer(drum displacer washer ),Valmet Twinroll press washer , our perforated plates ensure improved screening efficiency, reduced energy consumption, and longer service life.

Key Features

• High-precision CNC-drilled perforations ensuring uniform hole geometry and stable screening performance.
• Premium stainless steel material (/SS316 / SMO254) for excellent corrosion and wear resistance.
• Smooth polished surface to minimize fiber blockage and improve throughput.
• Optimized open area increasing screening capacity and reducing power consumption.
• Custom hole diameters, including 1.2 mm, 1.4 mm, 1.8 mm, slotted holes, stepped holes, and profile holes.
• Long service life with high mechanical strength and anti-abrasion properties.

Applications

• Andritz DD washer(drum displacer washer )
• Valmet Twinroll press washer

The vacuum roll is a key dewatering and sheet-handling component used in the forming and press sections of the paper machine. It is designed with a precision-drilled stainless steel or nickel-alloy shell, featuring thousands of uniform suction holes and an internal vacuum box system. The roll operates under controlled vacuum pressure to enhance water removal, sheet transfer, and web stability at high speeds.

Vacuum Press Roll

The vacuum press roll is used in the press section to increase sheet dryness before entering the drying section. By applying vacuum inside the roll shell, water is extracted more efficiently during the nip, improving dryness, reducing rewetting, and lowering steam consumption. The roll is equipped with a heavy-duty bearing system and is dynamically balanced for smooth operation.

Vacuum Pickup Roll

The vacuum pickup roll is located at the end of the forming section and plays a critical role in transferring the wet sheet from the forming fabric to the press felt. The vacuum zone ensures stable sheet pickup without sheet breaks, even at high machine speeds. The roll’s suction area and hole pattern are optimized to minimize marking and improve sheet formation.

Vacuum Couch Roll

The vacuum couch roll is positioned in the latter part of the forming section, where it provides final dewatering before the sheet leaves the wire section. High vacuum levels remove additional water from the web, improving sheet dryness and formation uniformity. The shell is engineered with corrosion-resistant materials and precise hole geometry to ensure long-term stability and consistent vacuum performance.

China Leading PAPER MACHINE manufacturer,stock preparation equipments, paper making machine, toilet tissue paper making machine,corrugated paper machine, A4 copy paper machine,Kraft paper machine, writing paper machine,printing paper machine,etc.

The press roll is a key component of the press section, designed to remove water from the wet paper web through mechanical pressure. It consists of a high-strength forged steel shell with optimized crown design to ensure uniform nip pressure across the full machine width. The roll surface is precision-ground to achieve excellent smoothness and dimensional accuracy, ensuring stable operation at high machine speeds.

The internal structure includes a high-efficiency water removal system, such as drilled blind holes or suction chambers (depending on roll type), which enhances dewatering performance and reduces sheet rewetting. Heavy-duty spherical roller bearings and a robust shaft design ensure long service life under continuous load. Dynamic balancing is performed according to G1.6 (or G2.5) standards to guarantee vibration-free running at operating speeds.

The press roll provides consistent nip loading, improved sheet dryness, and contributes to energy savings in the drying section, making it a critical component for high-quality paper production.

China Leading PAPER MACHINE manufacturer,stock preparation equipments, paper making machine, toilet tissue paper making machine,corrugated paper machine, A4 copy paper machine,Kraft paper machine, writing paper machine,printing paper machine,etc.

Technical Parameter

China Leading PAPER MACHINE manufacturer,stock preparation equipments,cylinder mould paper machine,fourdrinier paper machine,paper making machine,toilet paper machine, toilet tissue paper making machine,corrugated paper machine, A4 copy paper machine,Kraft paper machine, writing paper machine,printing paper machine,etc.

1. Wrapping diameter:φ600-1500mm
2. Wrapping length:100-2700mm
3. Turntable diameter: φ3200mm
4. Turntable height: 550mm
5. Turntable load bearing: 100-1500kg
6. Weight: 1500kg
7. Size: 3000mm*2200mm*2000mm
8. Power: 2.7kw/AC380V
9. Speed: 0~12 rpm(frequency conversion, adjustable)
10. Air pressure: 0.4-0.7Mpa
11. Control: PLC with touch screen
12. Optional device: Weight and printing device

China Leading PAPER MACHINE manufacturer,stock preparation equipments,cylinder mould paper machine,fourdrinier paper machine,paper making machine,toilet paper machine, toilet tissue paper making machine,corrugated paper machine, A4 copy paper machine,Kraft paper machine, writing paper machine,printing paper machine,etc.

China Leading PAPER MACHINE manufacturer,stock preparation equipments,cylinder mould paper machine,fourdrinier paper machine,paper making machine,toilet paper machine, toilet tissue paper making machine,corrugated paper machine, A4 copy paper machine,Kraft paper machine, writing paper machine,printing paper machine,etc.

1 Wire Fourdrinier paper machine:

2 Wire Fourdrinier paper machine:

3 Wire Fourdrinier Paper Machine:

Technical data:
Raw material: Recycled paper,Virgin pulp
Output paper: Kraft paper/Corrugated paper/Writing paper/Copy paper,etc
Weight: 40-300gsm
Wire: up to 5 wires(5 layers)
Net paper width: up to 5000mm
Capacity: up tp 500T/D
Work speed: up tp 500m/min

China Leading PAPER MACHINE manufacturer,stock preparation equipments,cylinder mould paper machine,fourdrinier paper machine,Crescent former tissue machine,paper making machine,toilet paper machine, toilet tissue paper making machine,corrugated paper machine, A4 copy paper machine,Kraft paper machine, writing paper machine,printing paper machine,etc.

Cylinder mould paper machine using a mesh-covered rotating cylinder partially immersed in a tank of fiber slurry in the wet end to form a paper web, giving a more random distribution of the cellulose fibers. Cylinder machines can form a sheet at higher consistency.

The ‘cylinder mould‘ process is closer to the ancient, hand made papermaking process, and specifically devoted to Fine Art products. The ‘cylinder mould paper machine made’ papers have a specific homogeneous sheet formation (or ‘looking through’), a deeper marked surface texture, and more randomly oriented fibers in all directions. As a result, the cylinder mould paper machine is generally renowned for its stability in the wet state, which is even increased when rag in an important component of the pulp composition.

Main parameters:
Cylinder mould diameter: up to 2000 mm
Cylinder mould face: up to 5500 mm

Working Speed: up to 250m/min

Cylinder mould paper machine for fluting paper,kraft paper,test liner,duplex board:

Cylinder mould paper machine for tissue paper:

Cylinder mould top design:

China Leading PAPER MACHINE manufacturer,stock preparation equipments,cylinder mould paper machine,fourdrinier paper machine,paper making machine,toilet paper machine, toilet tissue paper making machine,corrugated paper machine, A4 copy paper machine,Kraft paper machine, writing paper machine,printing paper machine,etc.

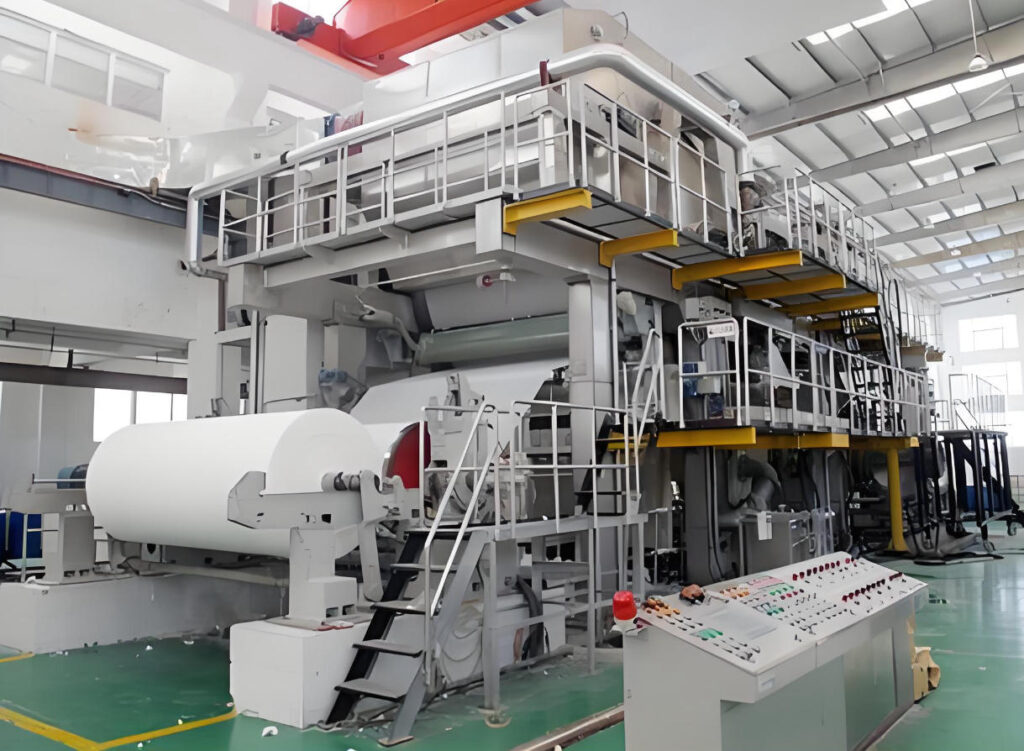

We manufacture a wide range of toilet tissue paper machine, the type includes 787,1092,1575,176,1880, 2100,2400,2880,3200,3800,etc,the paper width up to 3800mm,cylinder mould diameter up to 2000mm,dryer cylinder diameter up to 3660mm,speed up to 250m/min,capacity up to 20t/d.
the parameter of toilet tissue paper making mahine:
Raw material:Virgin pulp,Recycled paper
Output paper: high and middle grade tissue paper
Output weight: 13-40g
Model: 787mm,1092mm,1575mm,1880mm,2100mm2400mm,2880,3200,3800
Capacity: 1-20 tons per day
Working speed: 60-250m/min
Drive: AC converter frequency conversion, adjustable speed,rive step by step
Standard of design:National standards for the export of equipment.

China Leading PAPER MACHINE manufacturer,stock preparation equipments,cylinder mould paper machine,fourdrinier paper machine,Crescent former tissue machine,paper making machine,toilet paper machine, toilet tissue paper making machine,corrugated paper machine, A4 copy paper machine,Kraft paper machine, writing paper machine,printing paper machine,etc.
